This experiment showcases how to create an Earth using shaders, react-three-fiber, and drei.
Creating the earth shaders
The earth material uses a custom shader to switch between day and night textures based on the sun's position.
Sunlight
The sun position is provided via the uniform lightDirection to the shader. By using that uniform, we can calculate the lambertFactor.
// we will store the final result in a vec3 variable
vec3 result = vec3(0.0);
// load the 2D day texture
vec3 dayColor = texture2D(dayMap, vUv).rgb;
float rawLambertFactor = dot(normal, vLightDirection);
float lambertFactor = autoClamp(rawLambertFactor);

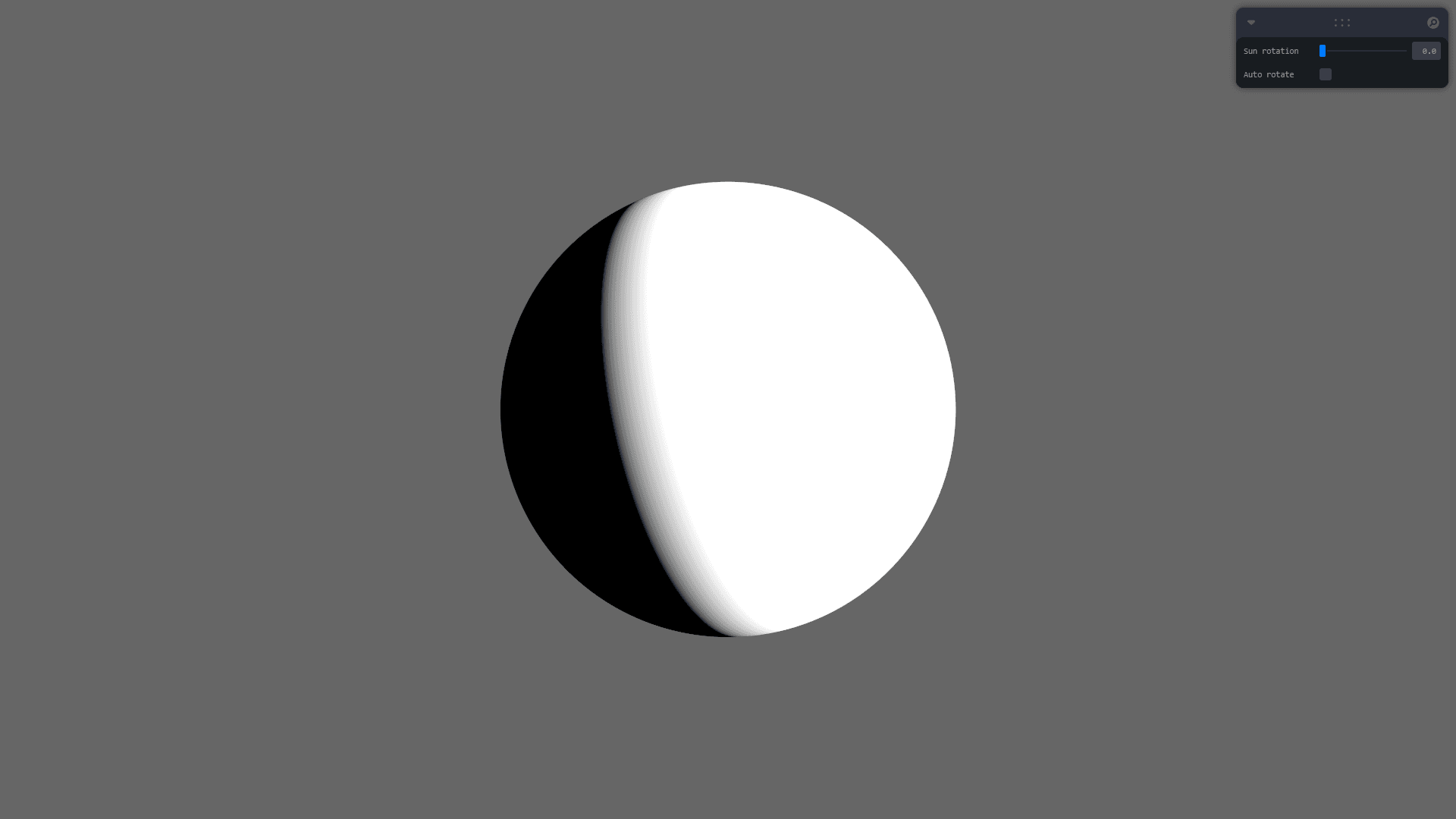

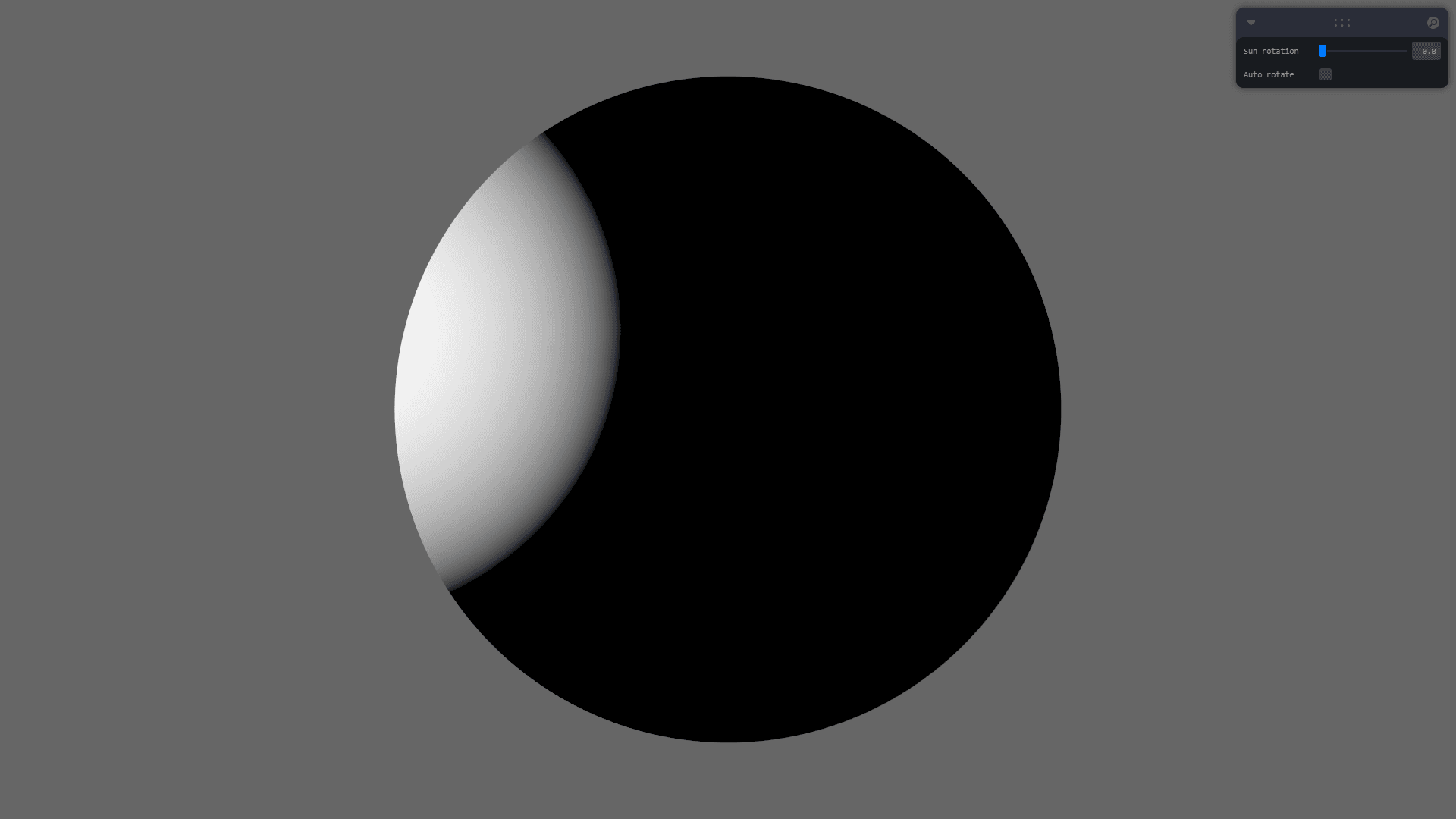

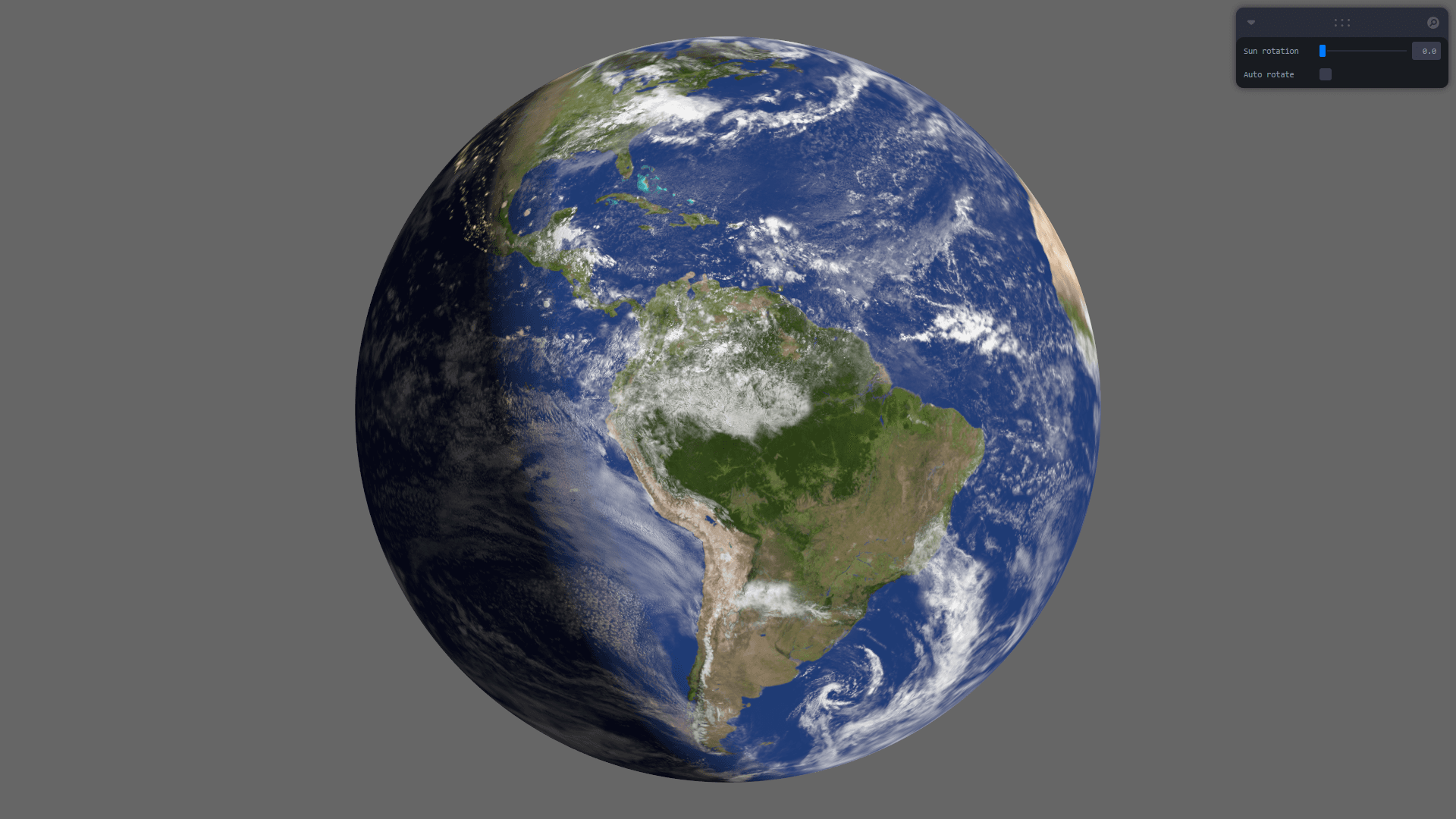

If we visualize the lambertFactor we get something like this:
But, that light is not very convincing, so we can remap the values to get a better effect:
// sunlight
float rawSunLightFactor = valueRemap(rawLambertFactor, -0.1, 0.1, 0.0, 1.0);
float sunLightFactor = autoClamp(rawSunLightFactor);
Day and night textures

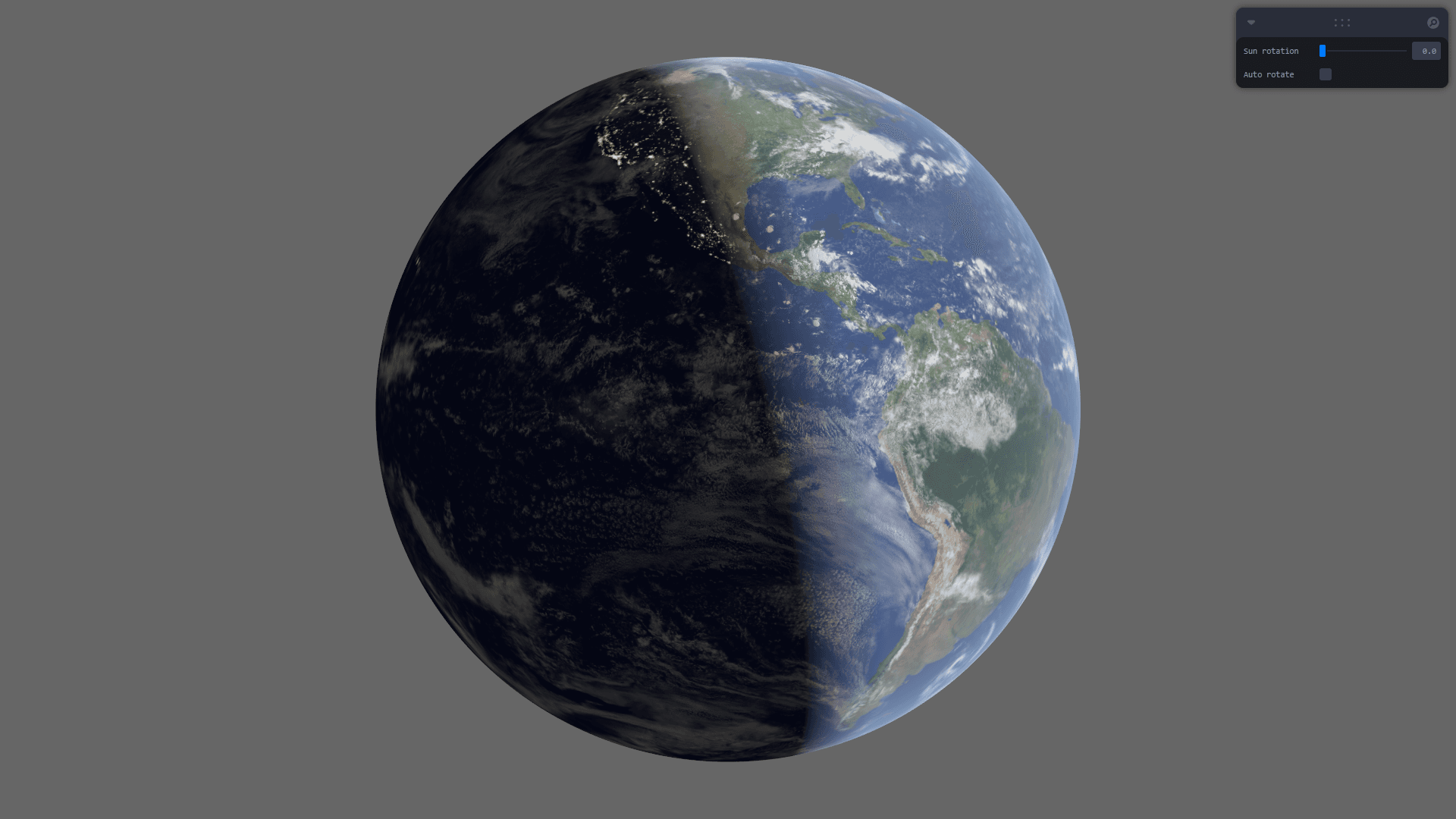

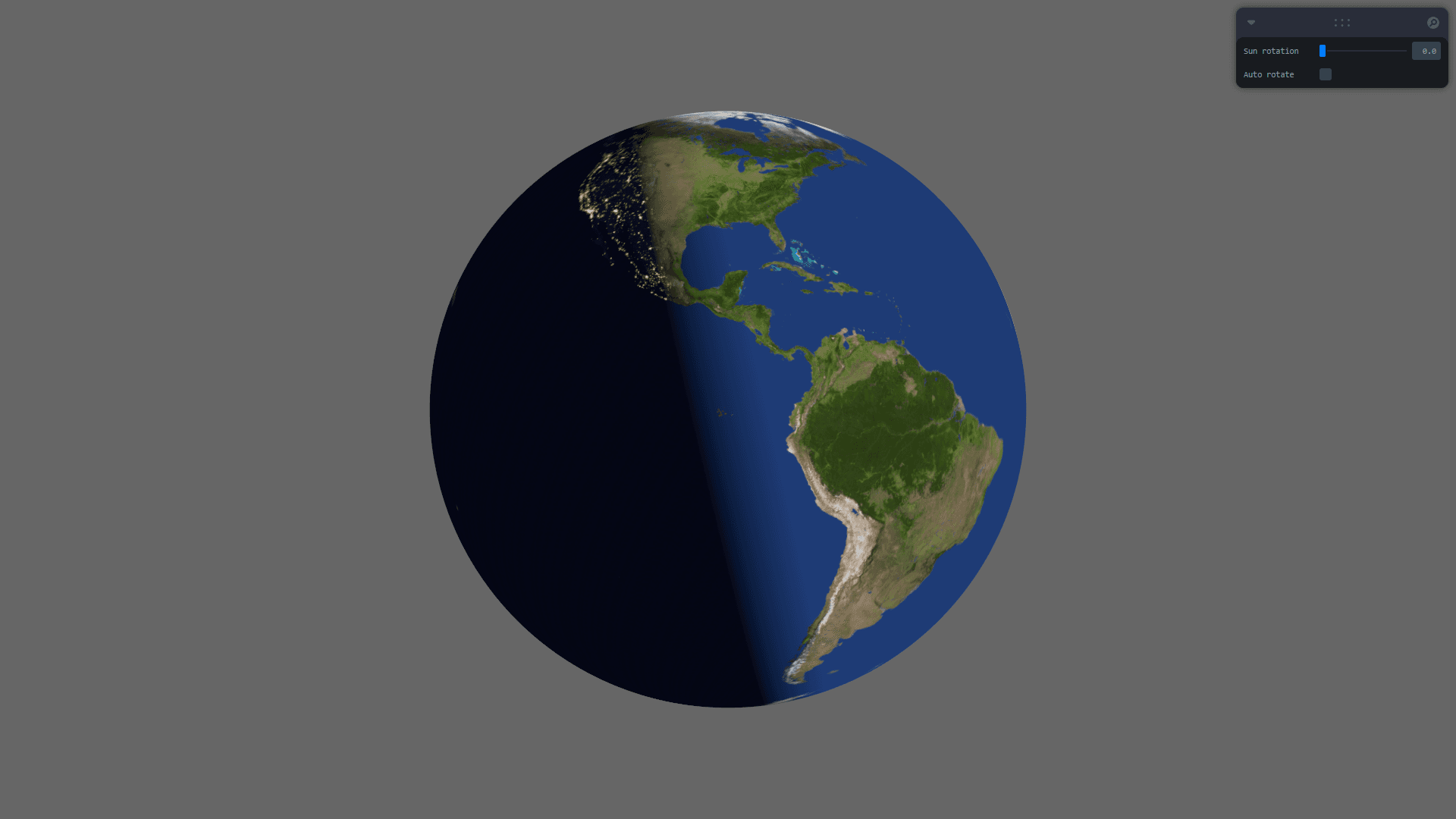

Now that we have a better sunLightFactor to work with, we can use it to switch between the day and night texture:
result = dayColor * sunLightFactor;
// night map
vec3 nightColor = texture2D(nightMap, vUv).rgb;
float nightLightsFactor = autoClamp(valueRemap(rawSunLightFactor, 0.0, 0.15, 0.0, 1.0));
nightColor = nightColor * (1.0 - nightLightsFactor); // lights only at night
result += nightColor;
Note: refer to the source code to see the valueRemap implementation
Clouds
The clouds on this project are a combination of procedural noise and textures. We want to switch between the two based on the distance between the camera and the Earth.
We can also animate the clouds by rotating the noise texture using the uTime uniform.
// noise
float rotation = uTime * 0.005;
vec3 wPosOffset = wPos * mat3( cos(rotation), 0, sin(rotation), 0, 1, 0, -sin(rotation), 0, cos(rotation) );
float noiseFactor = valueRemap(simplex3d_fractal(wPosOffset * 100.0), -1.0, 1.0, 0.0, 1.0);
float distanceFactor = autoClamp(
- distanceToCamera + 1.0
);
noiseFactor = noiseFactor * 0.5 * distanceFactor;

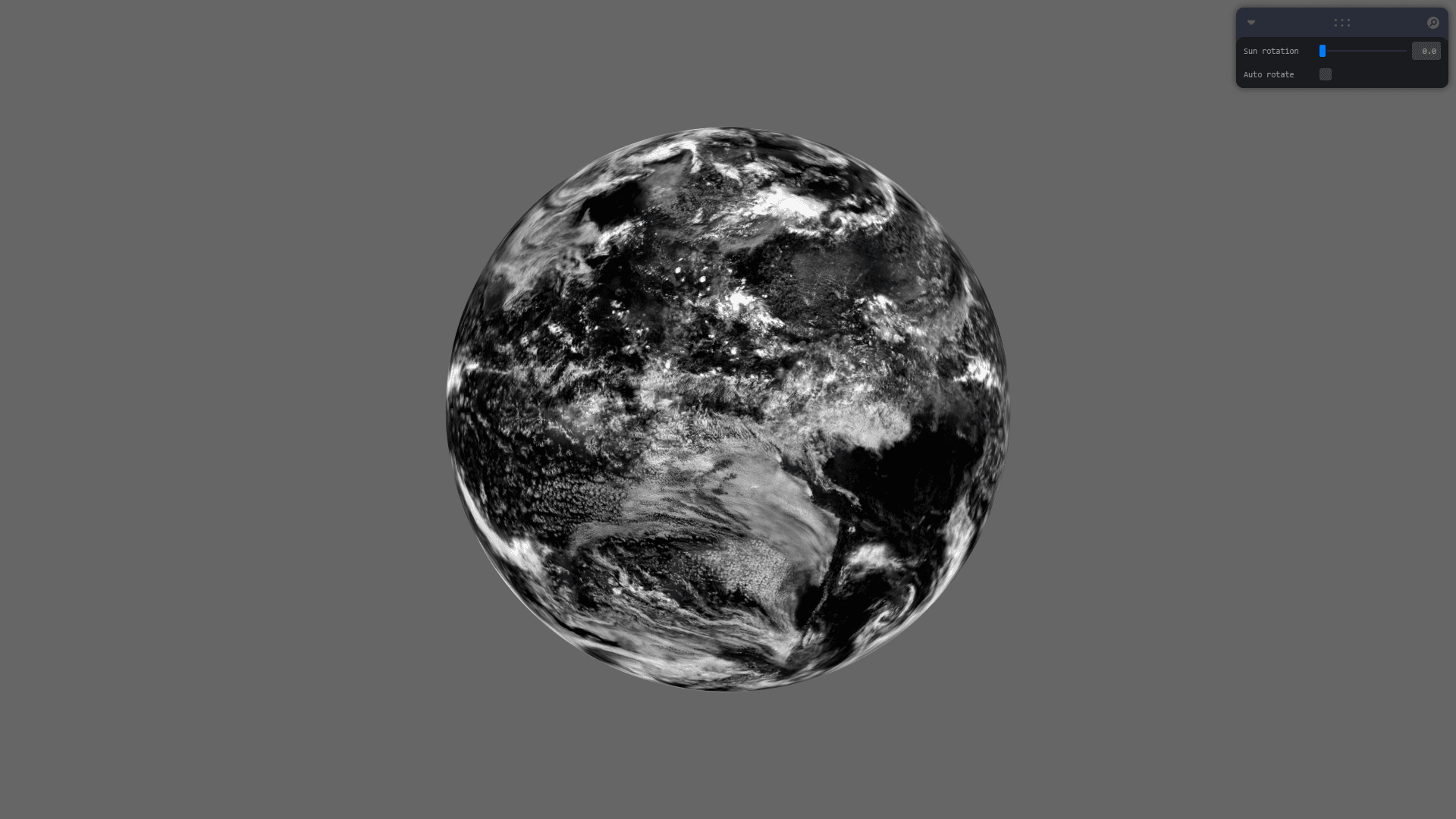

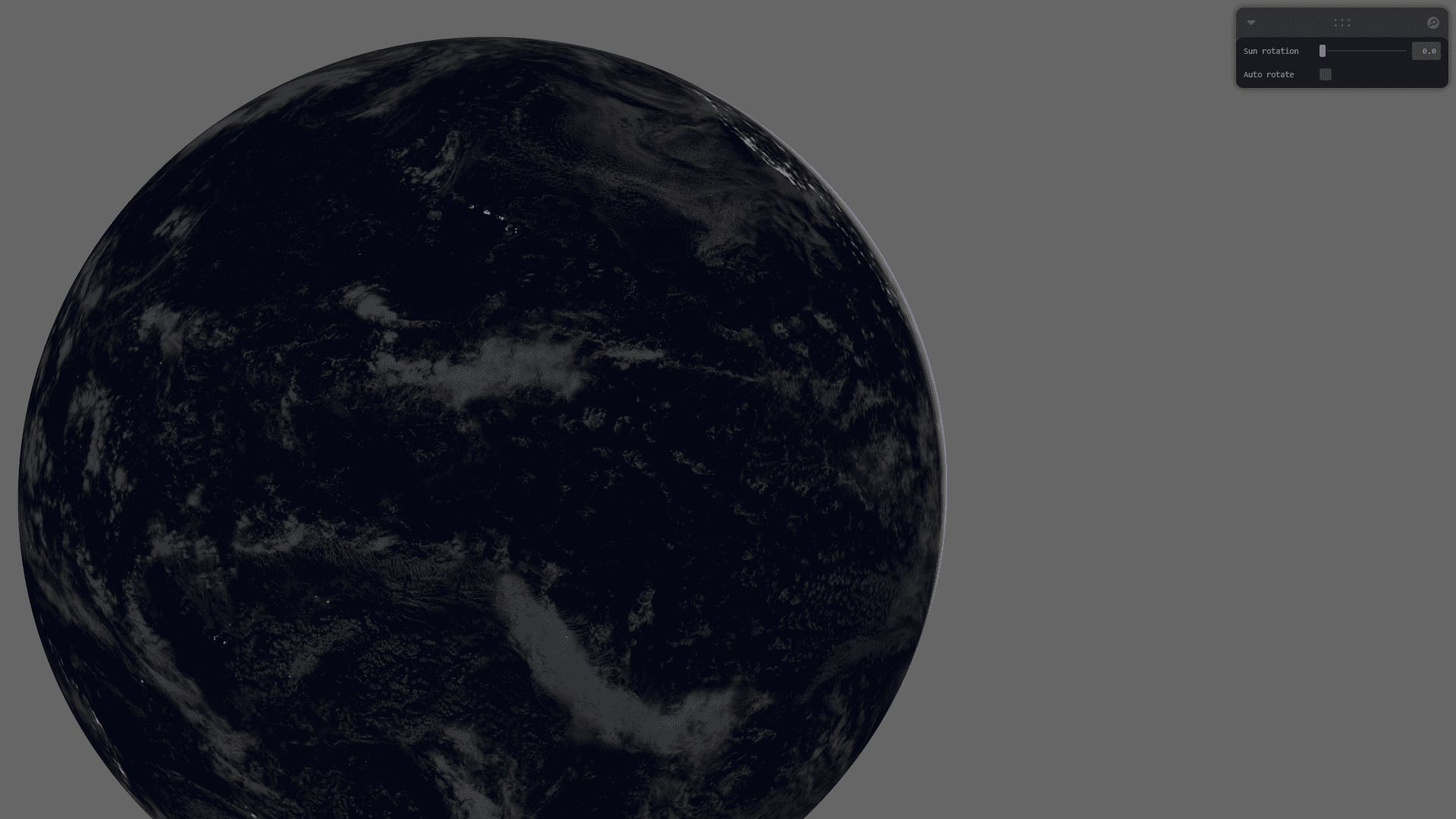

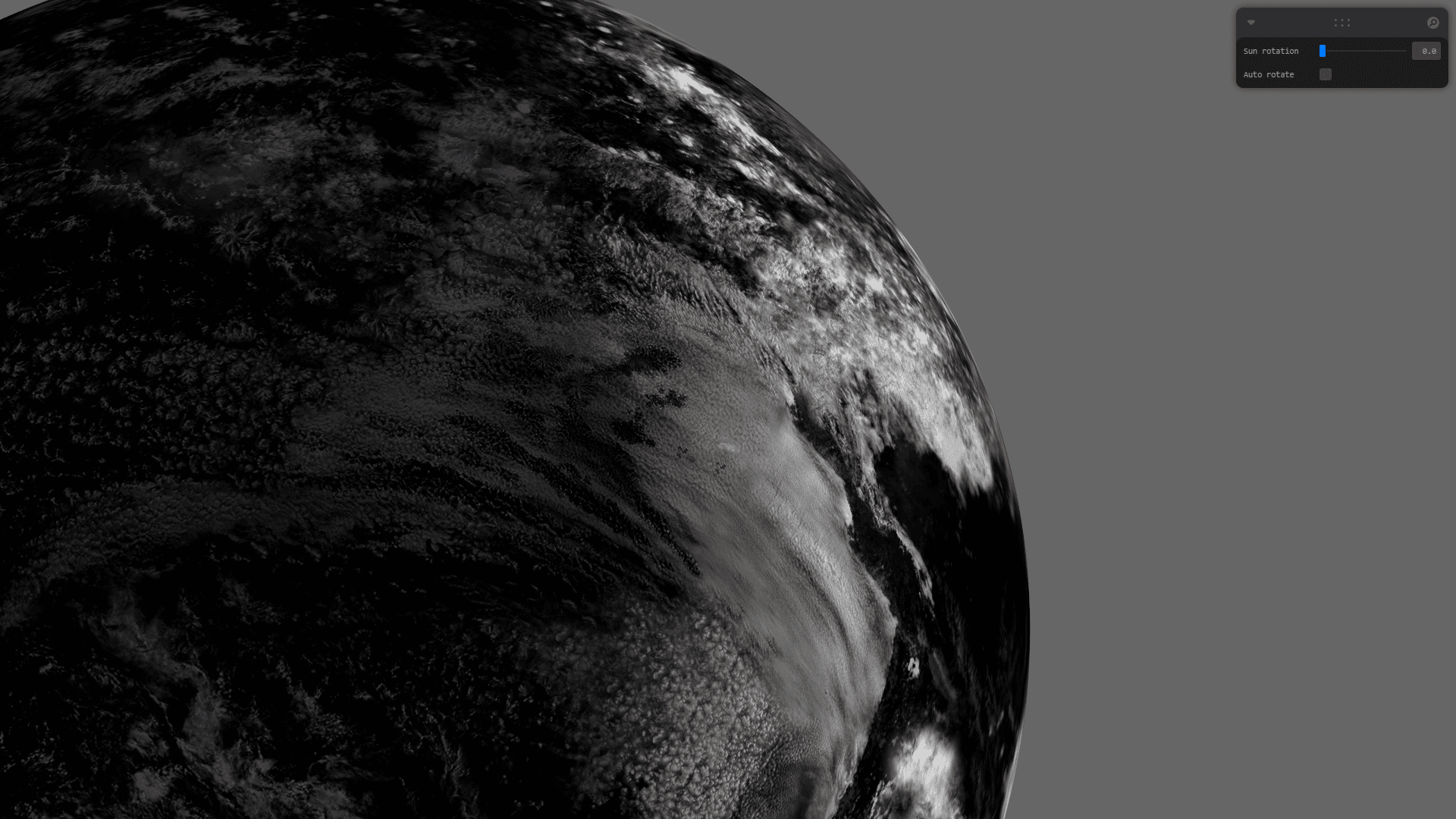

If we get close to the surface of the Earth, we can see the noise factor in action:
We can then combine the noise and the cloud texture:
// clouds
float cloudFactor = length(texture2D(cloudMap, vUv).rgb);
float cloudNoiseFactor = clamp(valueRemap(cloudFactor, 0.0, 0.5, 0.5, 1.0) * noiseFactor, 0.0, 1.0);
cloudFactor = clamp(cloudFactor - cloudNoiseFactor, 0.0, 1.0);
vec3 cloudColor = vec3(0.9);

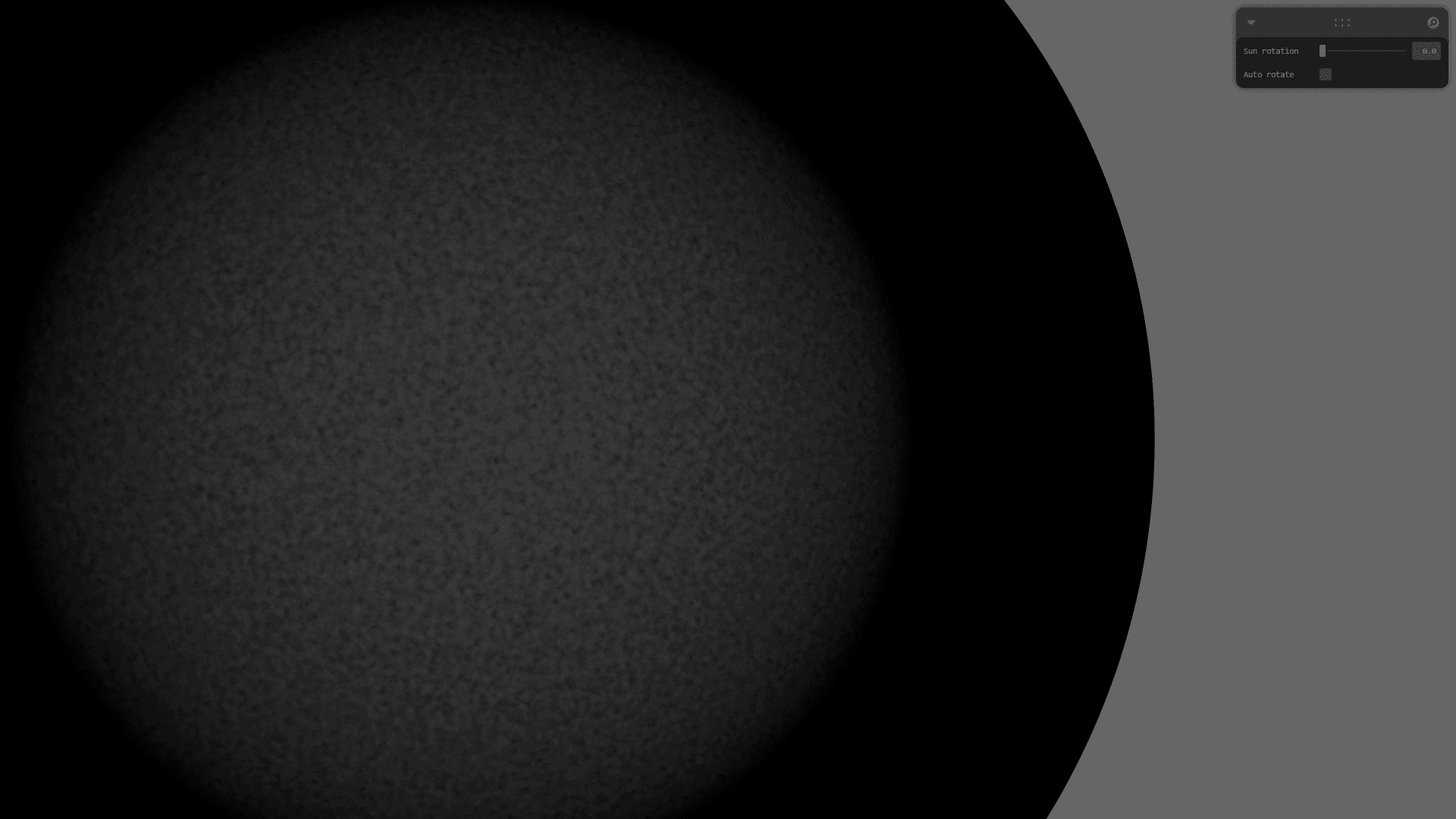

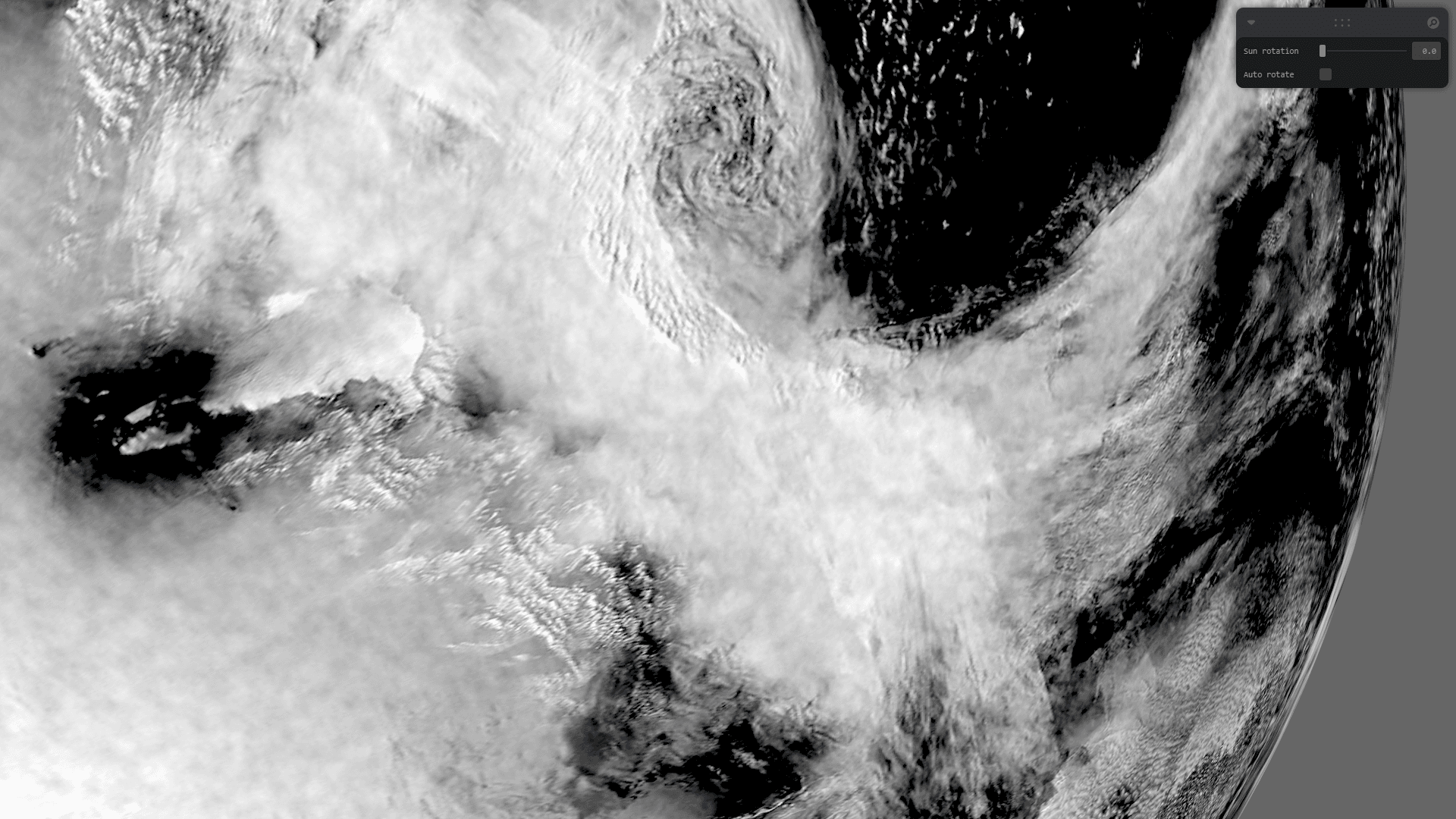

If we get closer, we can see the subtle noise effect:
Cloud normals
We can also add some normals to the clouds to make them look more realistic:
// clouds normals
float cloudNormalScale = 0.01;
vec3 cloudNormal = perturbNormalArb( wPos, normal, dHdxy_fwd(vUv, cloudMap, cloudNormalScale) );
float cloudNormalFactor = dot(cloudNormal, vLightDirection);
float cloudShadowFactor = clamp(
valueRemap(cloudNormalFactor, 0.0, 0.3, 0.3, 1.0),
0.3, 1.0
);
cloudShadowFactor = curveUp(cloudShadowFactor, 0.5);
// clouds with shadows
cloudColor *= cloudShadowFactor;
Sunset
A nice touch to add is a sunset color to the clouds. First, we need to calculate where the sunset should be:
// sunset
float sunsetFactor = clamp(valueRemap(rawSunLightFactor, -0.1, 0.85, -1.0, 1.0), -1.0, 1.0);
sunsetFactor = cos(sunsetFactor * PI) * 0.5 + 0.5;
vec3 sunsetColor = vec3(0.525, 0.273, 0.249);
If we then switch to the sunset color only at the sunset factor, we can get a nice sunset effect:
// clouds with sunset
float sunsetCloudFactor = pow(cloudFactor, 1.5) * sunsetFactor;
cloudColor *= clamp(sunLightFactor, 0.1, 1.0);
cloudColor = mix(cloudColor, sunsetColor, sunsetCloudFactor);
Finally, we can mix all together:
// clouds on earth
result = mix(result, cloudColor, cloudFactor);
Fresnel
The final touch to our earth shader is a fresnel effect to simulate an atmosphere. We can use the vNormal to calculate the fresnel effect:
// fresnel
float fresnelBias = 0.1;
float fresnelScale = 0.5;
float fresnelFactor = fresnelBias + fresnelScale * pow(1.0 - dot(normal, normalize(viewDirection)), 3.0);
vec3 athmosphereColor = vec3(0.51,0.714,1.);

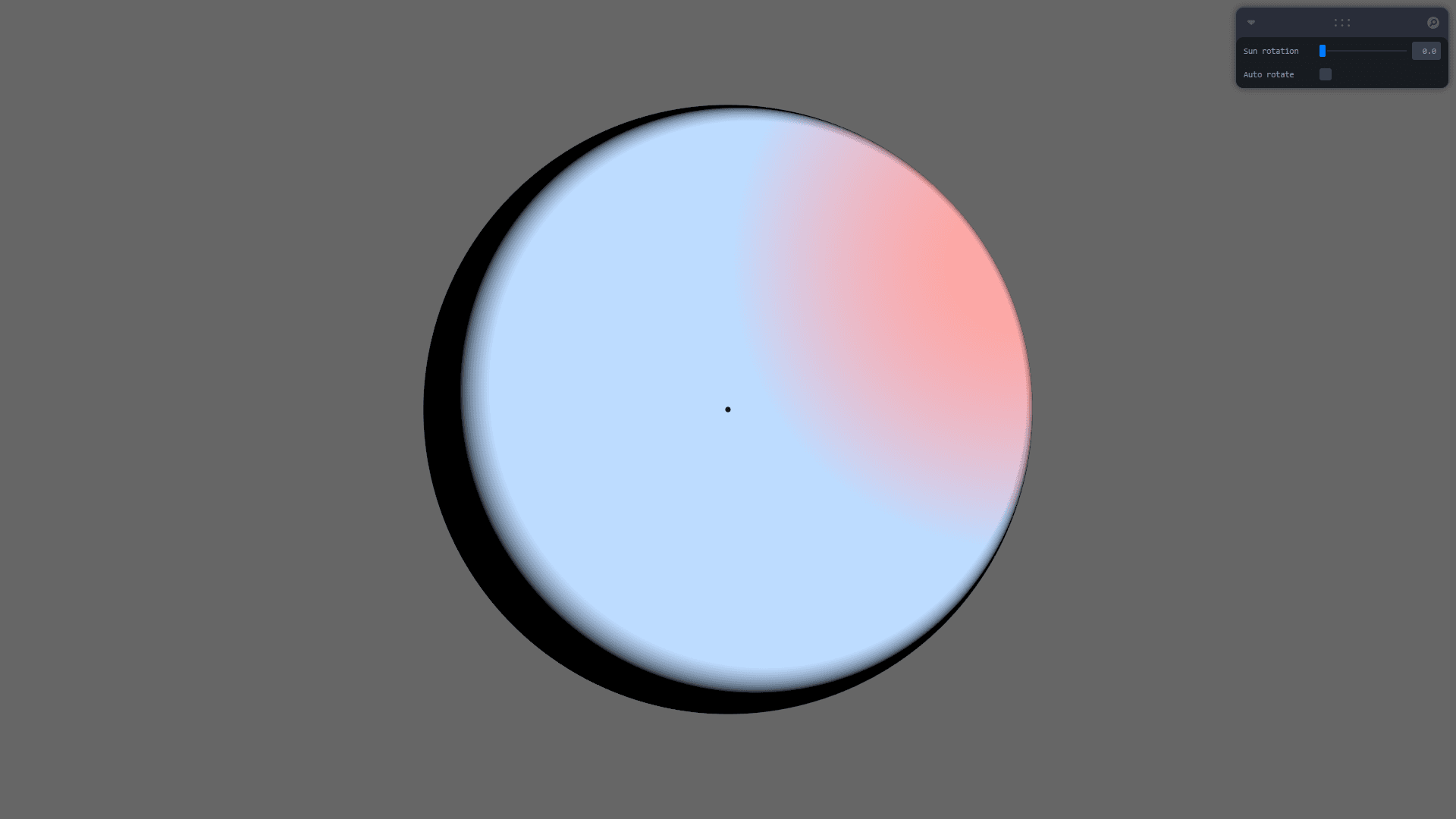

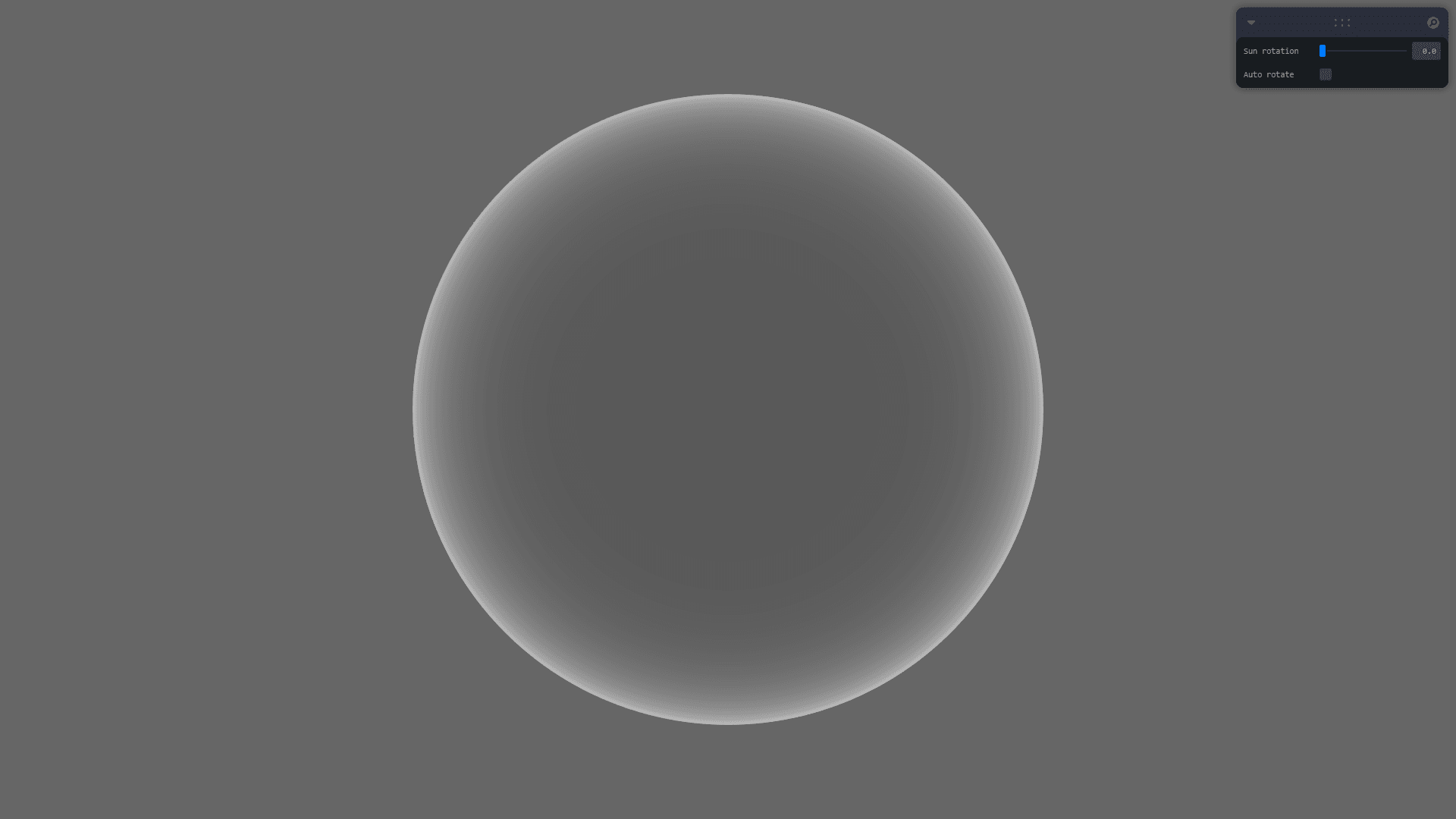

fresnelFactor preview:
We can also add a bit of red if the sun is setting. To achieve that, we can use the dot product between the light direction and the view direction:
// fresnel sunset
vec3 athmosphereSunsetColor = vec3(1.0, 0.373, 0.349);
float fresnelSunsetFactor = dot(-vLightDirection, viewDirection);
fresnelSunsetFactor = valueRemap(fresnelSunsetFactor, 0.97, 1.0, 0.0, 1.0);
fresnelSunsetFactor = autoClamp(fresnelSunsetFactor);
athmosphereColor = mix(athmosphereColor, athmosphereSunsetColor, fresnelSunsetFactor);

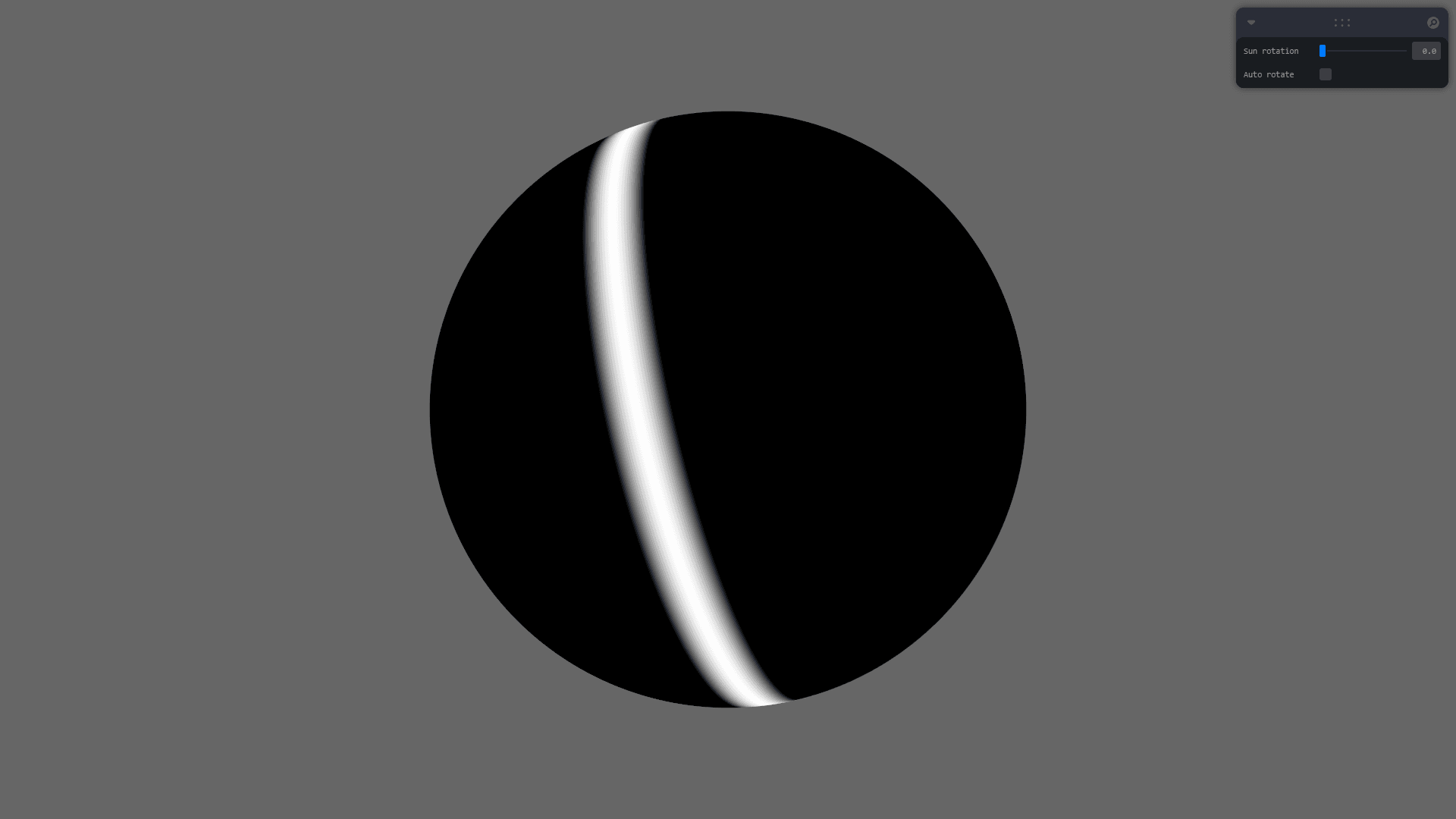

fresnelSunsetFactor preview:
We can use this mask to change the sunset's color based on the camera's position and the sun.
Finally, we can add the fresnel effect to the result:
result = mix(result, athmosphereColor, fresnelFactor * sunLightFactor);
// this clamp will help us to avoid the bloom effect in the earth later
result = clamp(result * 0.9, 0.0, 0.7);
gl_FragColor = vec4(vec3(result), 1.0);
Final earth shader:
Atmosphere
We can add an outer atmosphere to the Earth for better results. I added a second sphere with a bigger radius and a different shader:
//setup
vec3 vLightDirection = normalize(lightDirection);
vec3 normal = normalize(vNormal);
vec3 viewDirection = normalize(cameraPosition - wPos);
vec3 lightColor = vec3(1.0, 1.0, 1.0);
vec3 athmosphereColor = vec3(0.51,0.714,1.);
vec3 sunsetColor = vec3(1.0, 0.373, 0.349);
//lambert
float rawLambert = dot(normal, vLightDirection);
float lambert = clamp(rawLambert, 0.0, 1.0);
// sunlight
float rawSunLight = valueRemap(rawLambert, 0.0, 0.2, 0.0, 1.0);
float sunLight = clamp(rawSunLight, 0.0, 1.0);
// athmosphere
float fresnel = dot(-normal, viewDirection);
fresnel = clamp(valueRemap(fresnel, 0.0, 0.25, 0.0, 1.0), 0.0, 1.0);
fresnel = pow(fresnel, 4.0);
If we preview fresnel * sunLight, this is what we get:
Sunset on the atmosphere
We can add a bit of sunset color to the atmosphere like we did with the Earth:
// calculate sunset using dot product of sun direction and view direction
float sunsetFactor = dot(-vLightDirection, viewDirection);
sunsetFactor = valueRemap(sunsetFactor, 0.97, 1.0, 0.0, 1.0);
sunsetFactor = autoClamp(sunsetFactor);
vec3 result = mix(athmosphereColor, sunsetColor, sunsetFactor);
Preview of result * sunLight:
Then we can finally use the sunLight to set the alpha of the atmosphere. We do this because we do not want to add atmosphere on the dark side of the Earth:
gl_FragColor = vec4(vec3(result), 1.0);
gl_FragColor.a = fresnel * sunLight;

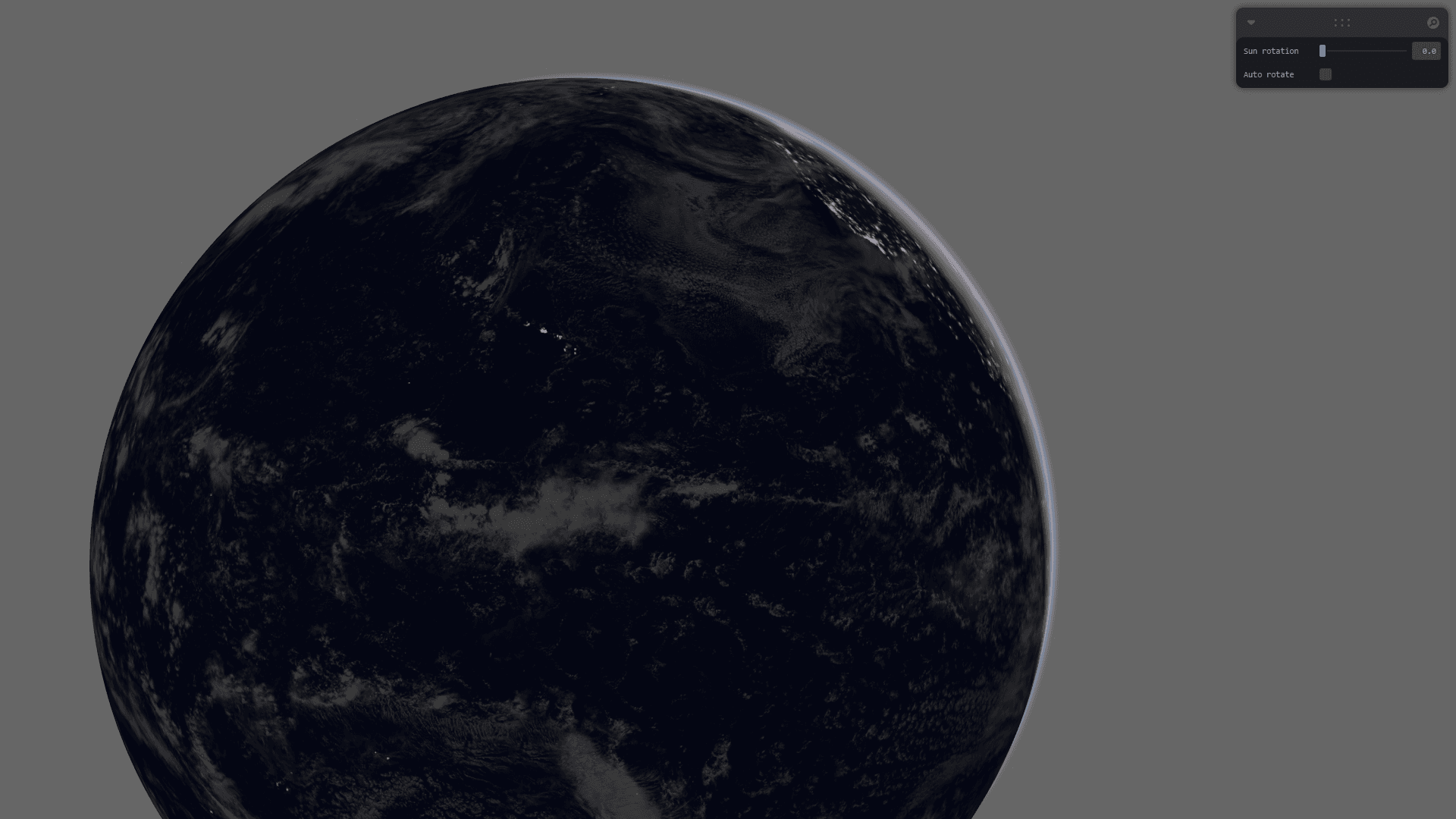

Result of the atmosphere shader with the Earth:
Enviroment
Of course, we are not finished. We need to add the sun and stars. For that we can create the BackgroundScene and Sun components:
// Sun/index.tsx
import { MeshProps } from "@react-three/fiber";
export const Sun = (props: MeshProps) => {
return (
<mesh {...props}>
<sphereGeometry args={[0.2, 32, 32]} />
<meshStandardMaterial
color="#ffffff"
emissive="orange"
emissiveIntensity={10}
toneMapped={false}
/>
</mesh>
);
};
// BackgroundScene/index.tsx
import { useEffect, useState } from "react";
import { useThree } from "@react-three/fiber";
import {
SRGBColorSpace,
TextureLoader,
Vector3,
WebGLCubeRenderTarget,
} from "three";
import { Sun } from "../Sun";
interface BackgroundSceneProps {
lightDirection: Vector3;
}
export const BackgroundScene = ({ lightDirection }: BackgroundSceneProps) => {
const [cubeTexture, setCubeTexture] = useState(null);
const { gl, scene } = useThree();
useEffect(() => {
const loader = new TextureLoader();
loader.load("/experiment-earth-assets/starmap_g4k.jpg", (texture) => {
texture.colorSpace = SRGBColorSpace;
const cubeRenderTarget = new WebGLCubeRenderTarget(texture.image.height);
cubeRenderTarget.fromEquirectangularTexture(gl, texture);
setCubeTexture(cubeRenderTarget.texture);
});
}, [gl]);
useEffect(() => {
if (cubeTexture) {
scene.background = cubeTexture;
}
}, [cubeTexture]);
return (
<>
<Sun position={lightDirection.clone().multiplyScalar(15)} />
</>
);
};
We want to render the background and the Earth in separate scenes because we dont want the sun to move if we move around the Earth, that will create the illusion that the sun is infinitely far away.
// PrimaryScene/index.tsx
import { createPortal, useFrame, useThree } from "@react-three/fiber";
import { OrbitControls, PerspectiveCamera, useFBO } from "@react-three/drei";
import { Earth } from "../Earth";
import { BackgroundScene } from "../BackgroundScene";
import { PropsWithChildren, useEffect, useMemo, useRef } from "react";
import { Scene, RGBAFormat, Camera } from "three";
import { useLightDirection } from "./useLightDirection";
export interface PrimarySceneProps {}
export const PrimaryScene = ({
children,
}: PropsWithChildren<PrimarySceneProps>) => {
const { scene } = useThree();
const lightDirection = useLightDirection();
const cam = useRef<Camera | null>(null);
const target = useFBO({
samples: 8,
stencilBuffer: false,
format: RGBAFormat,
});
const backgroundScene = useMemo(() => {
const bgScene = new Scene();
return bgScene;
}, []);
useFrame((state) => {
cam.current.rotation.copy(state.camera.rotation);
state.gl.setRenderTarget(target);
state.gl.render(backgroundScene, cam.current);
state.gl.setRenderTarget(null);
});
useEffect(() => {
scene.background = target.texture;
}, [target.texture]);
return (
<>
<PerspectiveCamera fov={40} ref={cam} />
{/*Render the background scene but attach it to the backgroundScene*/}
{createPortal(
<BackgroundScene lightDirection={lightDirection} />,
backgroundScene as any
)}
{children}
<Earth lightDirection={lightDirection} />
<OrbitControls />
<ambientLight />
</>
);
};
Finally, we can add some post-processing effects to the scene. I used the @react-three/postprocessing library to add a vignette, noise, and bloom:
// Effects.tsx
import {
Bloom,
EffectComposer,
Noise,
Vignette,
} from "@react-three/postprocessing";
export function Effects() {
return (
<>
<EffectComposer multisampling={8}>
<Noise opacity={0.025} />
<Vignette eskil={false} offset={0.1} darkness={1.1} />
<Bloom mipmapBlur luminanceThreshold={0.71} levels={6} intensity={10} />
</EffectComposer>
</>
);
}
Final result
